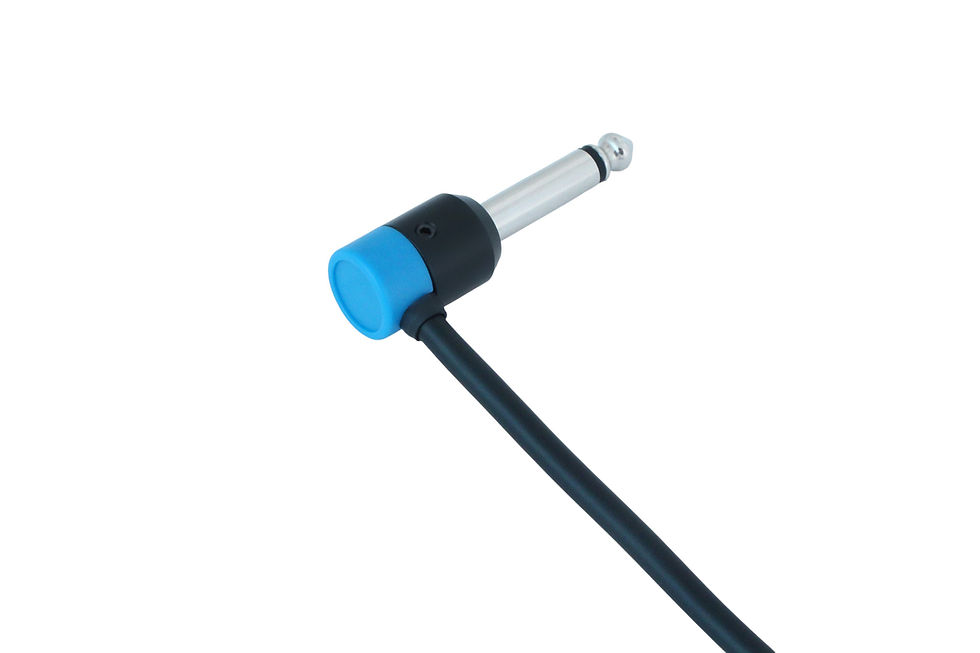

Low-Profile right angle Professional 1/4" Phone Plug, 2-Pole, nickel plated contacts, SOLDER type, Black shell. Designed to offer maximum flexibility for using multiple right angle plugs adjacent to each other e.g. patch bays, portable mixers, consoles, rack gear, and instrument effects pedalboards. Ideal for guitar / instrument cables, pedalboard jumpers and multichannel snakes.
Our unique design is perfect for right angle applications with the assurance of soldered connections fitted on multiple adjacent sockets with cable management a function and aesthetic. Assembly is seamless with "keyed" components with precise tolerances.
Available in 10 interchangeable Cap colors: Black, Red, Blue, Green, Yellow, Orange, White, Gray, Purple and Brown.
Two Cap Versions: Standard cap accepts cable diameters up to about 4mm (e.g. Mogami W2314, Canare GS-4) and the Large cap accepts cables from up to 6.0mm (e.g. Mogami W2319, W2893 etc.).
The interchangeable Color Caps can be ordered separately to customize your color profile at any time. Our Low-Profile Plugs are manufactured with the highest quality standards and are fully repairable.
Low-Profile Right Angle 1/4" Phone Plug, 2-Pole
Low-Profile Right Angle
2-Pole (Tip-Sleeve, Mono)
Solder Contacts
Cable Outlet: up to 4mm, or up to 6.0mm
Weight: 14g
Dimensions, Standard Cap: 14mm x 52mm
Dimensions, Large Cap: 14mm x 54mm
20mm (22 w large cap) exposed out of jack when plugged in
Black shell, Machined Brass
Color Caps: Molded ABS Thermoplastic
Contacts: Nickel Plated Brass
