Low-Profile Right Angle XLR 5-pin Female Connector, A-Shell = Adjustable Multi-angle cable exit 120° around 3 o'clock or 9 o'clock, matte Black shell with gold pins. Available with Black cap. Can be color-coded with the addition of a color cap [sold separately]: Red, Blue, Green, Yellow, Orange, White, Gray, Purple and Brown.

Two Cap Versions: Standard cap accepts cable diameters up to 3.4mm and the new Large cap accepts cables from 3.8mm to 6.0mm. You can adjust the cable outlet of the XLR 120° around 3 o'clock or 9 o'clock.

Compatibility: We offer compatible high-quality bulk cable for our Lo-Pro connectors sold by the meter for DIY projects. The Standard cap is also compatible with popular slim cable models such as Belden 1804A, Mogami W2901, W3031, W2697 and Sommer Isopod SO-F22.


The Large Cap can use the super popular Mogami W2549, W2534, W2893, W2552, Canare L-4E6S and many more.

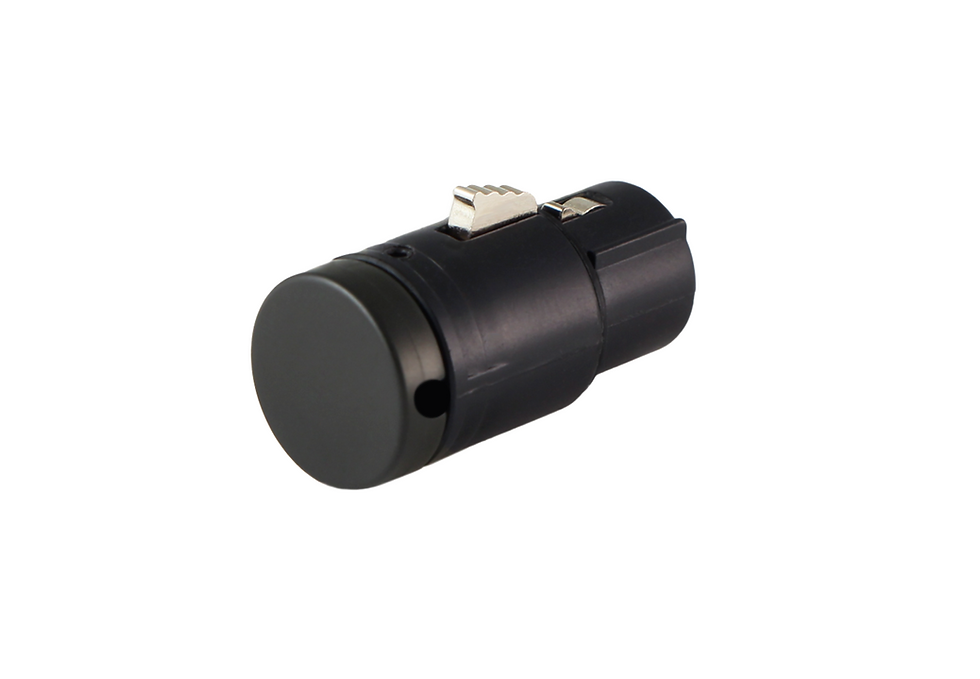

Low-Profile Right Angle XLR 5-pin Female, A-Shell

Select Color: Black
  • CT-AX5F-K or CT-AX5FL-K Black

  • Low-Profile Right Angle
    A Shell
    Cable Outlet: up to 3.4mm or 3.8 to 6.0mm
    Angle Adjust: 30° to 150° and 210° to 330°
    120° adjustment swing
    Weight: 1.2 oz
    Dimensions: 37mm x 18mm (Standard Cap)
    39mm x 18mm (Large Cap)
    Black shell, Gold Contacts


    DATA SHEET [.pdf]
